Rock Feed Hopper
The Elkamak Rock Feeding Bunker is designed to receive large, heavy rock and transfer it to the primary crusher in a controlled manner. Its reinforced structure provides high resistance to impact and abrasion under demanding quarry and mining conditions.
ERFB-20 · +5 models
- Volume
- 20m³
- Body Thickness
- 12mm
- Liner
- 10 (ops.)mm
- Feeding
- Vibro / paletli
Overview

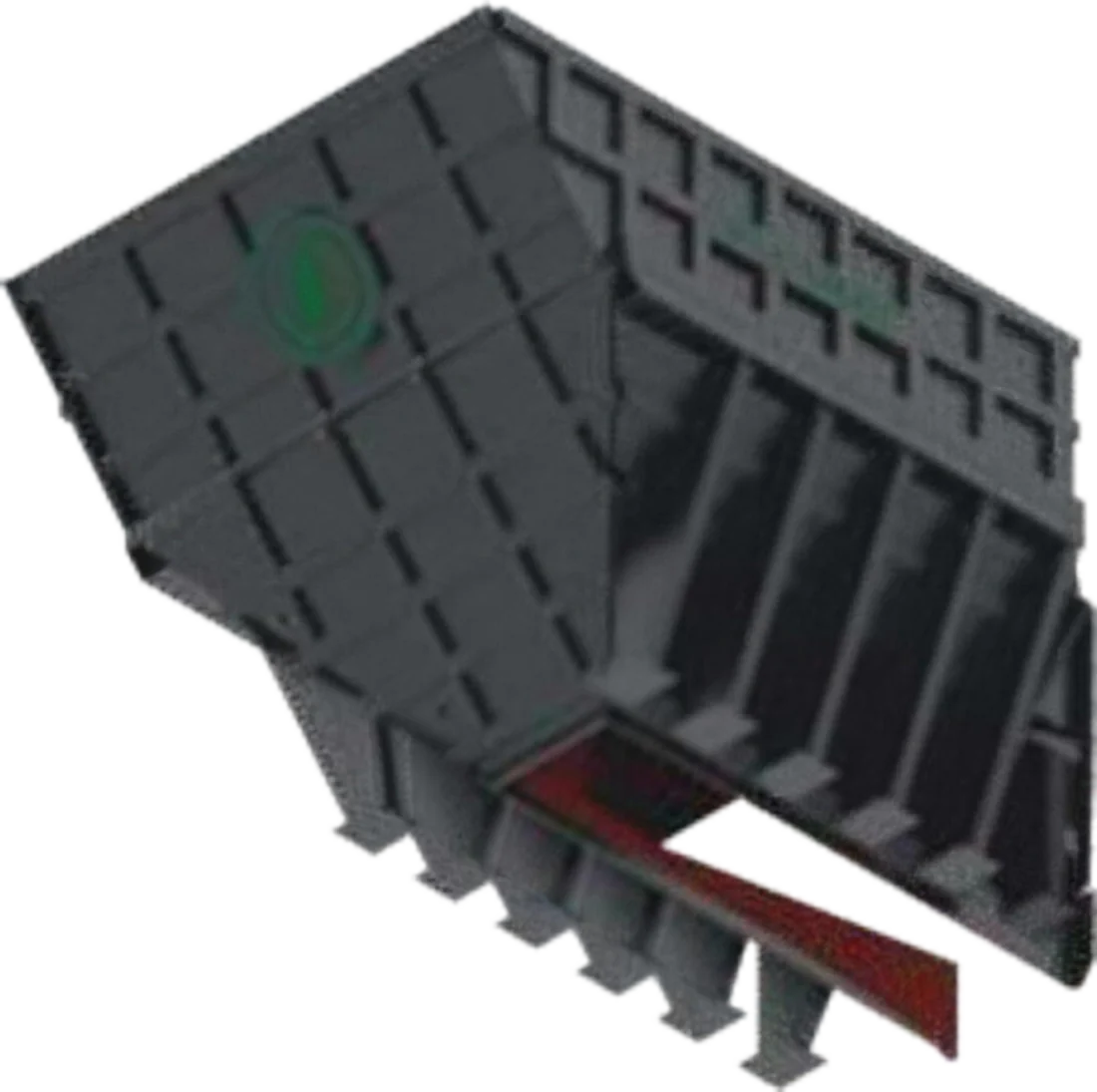

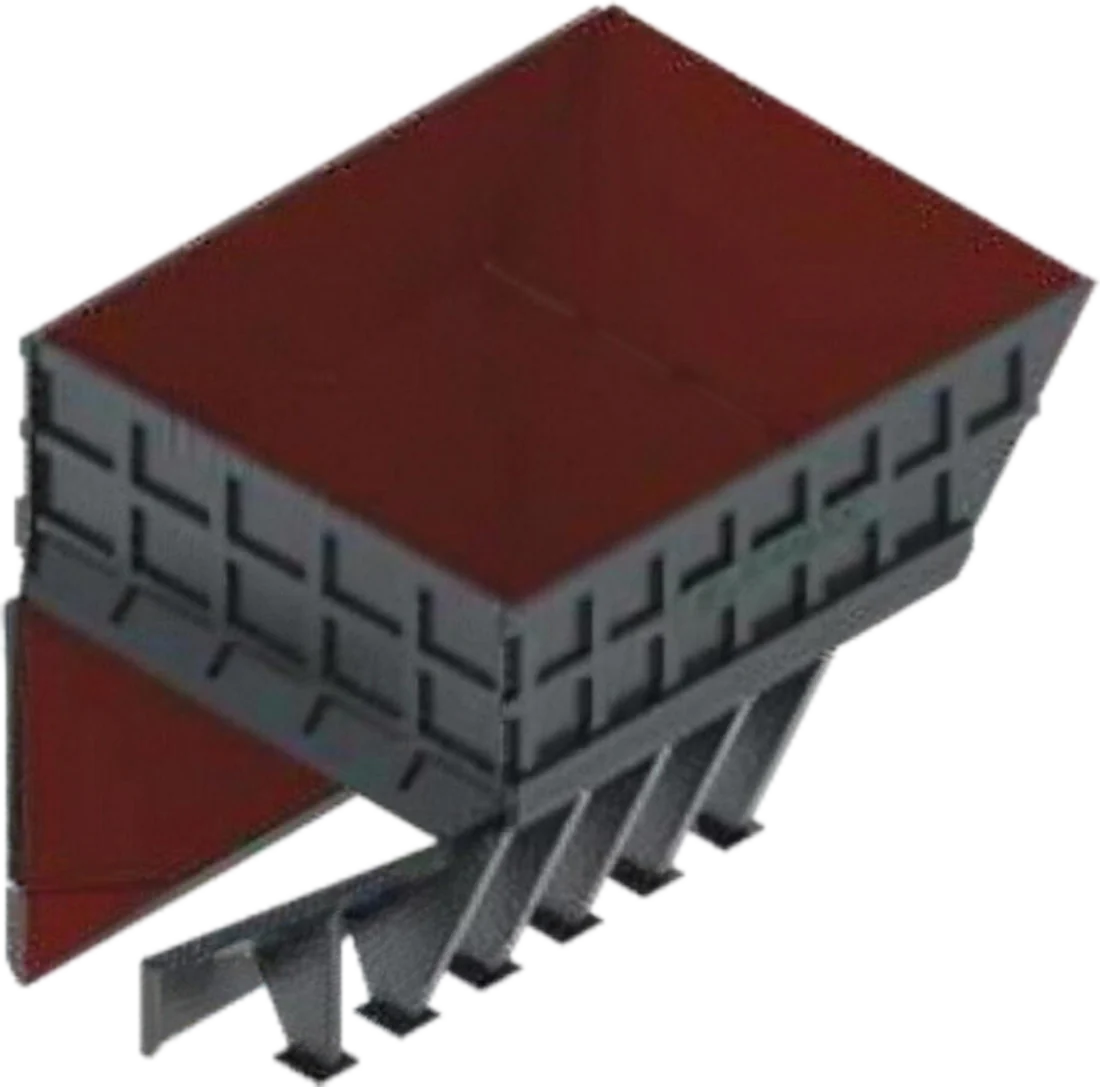

Elkamak Rock Feeding Bunker
The Elkamak Rock Feeding Bunker is designed to receive large, heavy and abrasive rock from quarries and mining operations. Positioned at the beginning of the crushing line, it enables material to be transferred to the primary crusher in a controlled and consistent manner.
Operating Principle
Rock discharged into the bunker by trucks or loaders is transferred to the primary crusher through a suitable heavy-duty feeder system. This controlled flow reduces sudden and irregular loading and supports more stable crusher operation.
Key Features
- Designed to receive large and heavy rock
- Reinforced construction with high impact resistance
- Durable surfaces for abrasive operating conditions
- Controlled and consistent feeding to the primary crusher
- Compatibility with heavy-duty feeder systems
- Customizable design according to loading and project requirements
Applications
Rock feeding bunkers are suitable for quarries, mining operations, high-capacity crushing and screening plants and primary crushing applications.
With its heavy-duty construction and controlled feeding capability, the Elkamak Rock Feeding Bunker supports reliable primary crushing and uninterrupted plant operation.
Models & Specifications
| Model | Volume(m³) | Body Thickness(mm) | Liner(mm) | Feeding |
|---|---|---|---|---|
| ERFB-20 | 20 | 12 | 10 (ops.) | Vibro / paletli |
| ERFB-25 | 25 | 15 | 12 (ops.) | Vibro / paletli |
| ERFB-35 | 35 | 20 | 15 (ops.) | Vibro / paletli |
| ERFB-50 | 50 | 20 | 15 (ops.) | Vibro / paletli |
| ERFB-60 | 60 | 25 | 20 (ops.) | Vibro / paletli |
| ERFB-70 | 70 | 25 | 20 (ops.) | Vibro / paletli |
