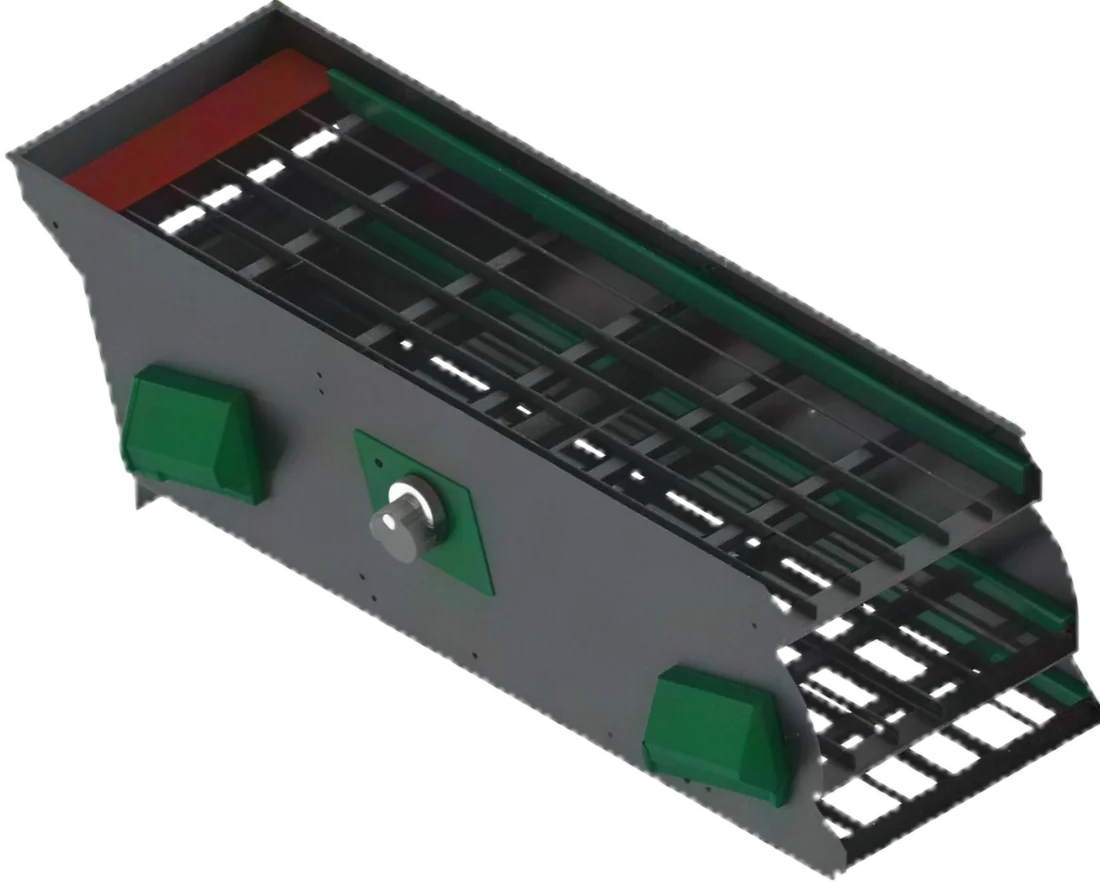

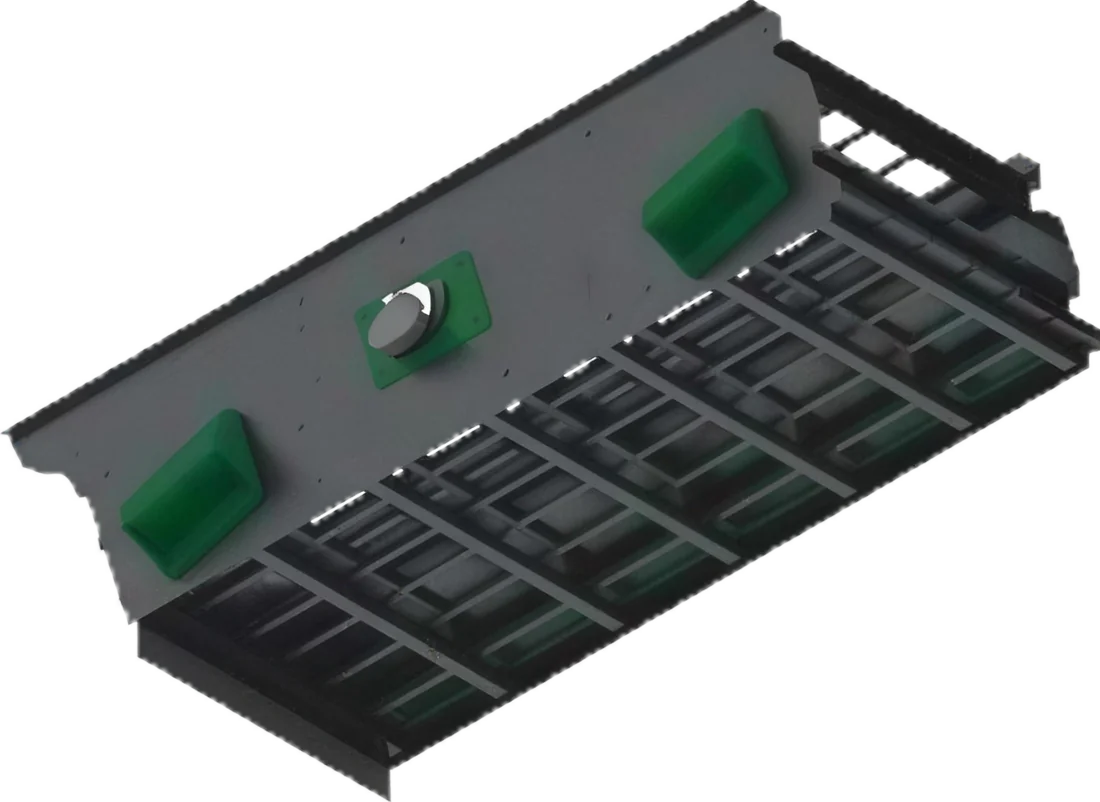

Grizzly Screen
The Elkamak Grizzly Screen removes soil, fines and unwanted material from large rock at the beginning of the process. Its adjustable bar arrangement and heavy-duty construction provide effective pre-screening before primary crushing.
VGS 1030 · +4 models
- Width
- 1000mm
- Length
- 3000mm
- Decks
- 2
- Speed
- 1000rpm
Overview
Elkamak Grizzly Screen
The Elkamak Grizzly Screen is designed to pre-screen material before it enters the crushing process in quarry and mining applications. It separates soil, fines and unwanted material arriving together with large rock at the beginning of the production line.
Operating Principle
Material received from the bunker or feeder moves across the grizzly bars under a controlled vibrating motion. Soil and particles smaller than the bar openings pass through, while larger and usable rock continues to the primary crusher or the next processing unit.
Adjustable bar openings enable the separation process to be adapted to the characteristics and fine-material content of the feed.
Key Features
- Effective pre-screening at the beginning of the process
- Separation of large rock from fines and unwanted material
- Adjustable grizzly bar openings
- Reduced unnecessary load on the primary crusher
- Reinforced construction for large and heavy material
- Impact- and wear-resistant grizzly surface
- Low maintenance requirements and long operating life
Applications
Elkamak Grizzly Screens can be used in quarries, mining operations, rock feeding systems, primary crushing lines, construction material production and recycling plants.
Through effective pre-screening, the Elkamak Grizzly Screen reduces the amount of unnecessary fine material reaching the crusher and supports more efficient primary crushing.
Models & Specifications
| Model | Width(mm) | Length(mm) | Decks | Speed(rpm) | Motor Power(kW) |
|---|---|---|---|---|---|
| VGS 1030 | 1000 | 3000 | 2 | 1000 | 7.5 |
| VGS 1230 | 1200 | 3000 | 2 | 1000 | 11 |
| VGS 1340 | 1300 | 4000 | 2 | 1000 | 11 |
| VGS 1430 | 1400 | 3000 | 2 | 1000 | 11 |
| VGS 1440 | 1400 | 4000 | 2 | 1000 | 15 |
