Vibrating Screen
The Elkamak Vibrating Screen precisely classifies stone, aggregate, sand, ore and similar materials according to particle size. Its powerful vibration mechanism, adaptable screening surfaces and robust construction provide efficient and reliable screening.
VAS 1230 · +10 models
- Width
- 1200mm
- Length
- 3000mm
- Decks
- 2-4
- Speed
- 1000rpm
Overview

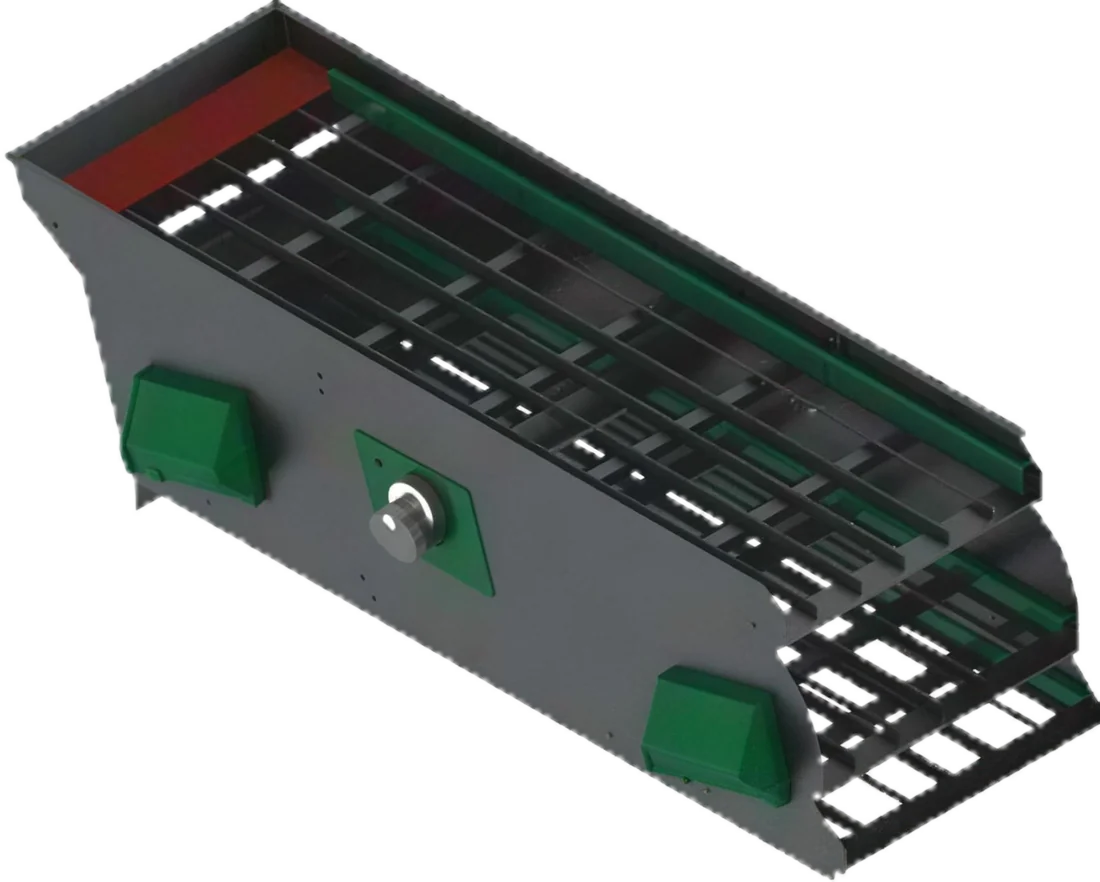

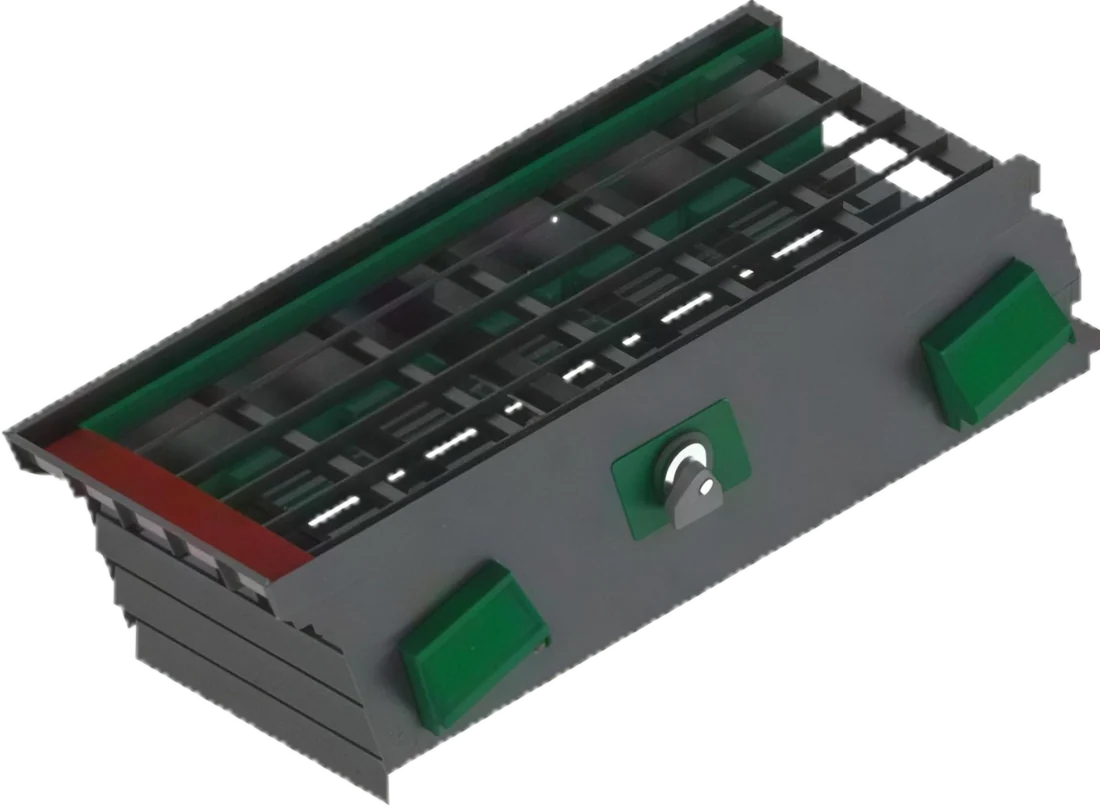

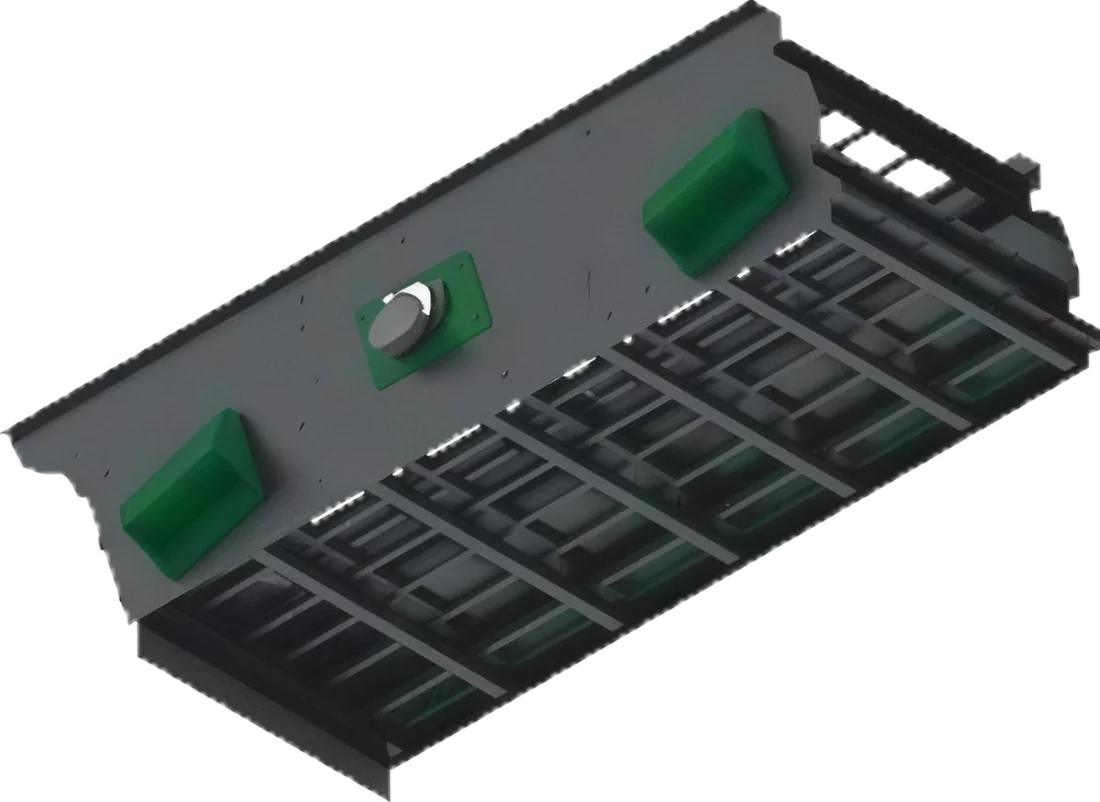

Elkamak Vibrating Screen
The Elkamak Vibrating Screen is designed to separate and classify materials according to the required particle sizes in crushing and screening plants. It efficiently screens stone, aggregate, sand, gravel, mineral ore and similar materials, improving overall production performance.
Operating Principle
Material fed onto the screening surface moves forward under a powerful and controlled vibrating motion. Particles smaller than the screen openings pass through to the lower deck, while larger particles continue along the surface. The material is consequently divided into the required fractions.
Screening surfaces with different openings and multiple-deck configurations allow several product sizes to be produced during a single screening process.
Key Features
- Precise and efficient material classification
- Powerful and balanced vibration mechanism
- Flexible sizing with different screen openings
- Multiple-deck configuration options
- Compatibility with steel and polyurethane screening surfaces
- Wear-resistant and durable construction
- Easy maintenance and low operating requirements
Applications
Elkamak Vibrating Screens can be used in quarries, mining operations, aggregate production plants, construction material production and recycling applications.
With its powerful vibration technology and adaptable screening surfaces, the Elkamak Vibrating Screen provides a reliable solution for precise classification and continuous production.
Models & Specifications
| Model | Width(mm) | Length(mm) | Decks | Speed(rpm) | Motor Power(kW) |
|---|---|---|---|---|---|
| VAS 1230 | 1200 | 3000 | 2-4 | 1000 | 7.5-11 |
| VAS 1340 | 1300 | 4000 | 2-4 | 1000 | 11-15 |
| VAS 1540 | 1500 | 4000 | 2-4 | 1000 | 15-18.5 |
| VAS 1650 | 1600 | 5000 | 2-4 | 1000 | 18.5 |
| VAS 1850 | 1800 | 5000 | 2-4 | 1000 | 18.5-22 |
| VAS 2050 | 2000 | 5000 | 2-4 | 1000 | 22 |
| VAS 2060 | 2000 | 6000 | 2-4 | 1000 | 22-30 |
| VAS 2260 | 2200 | 6000 | 2-4 | 1000 | 30 |
| VAS 2460 | 2400 | 6000 | 2-4 | 1000 | 30 |
| VAS 2472 | 2400 | 7200 | 2-4 | 1000 | 2x22 |
| VAS 2575 | 2500 | 7500 | 2-4 | 1000 | 2x30 |
