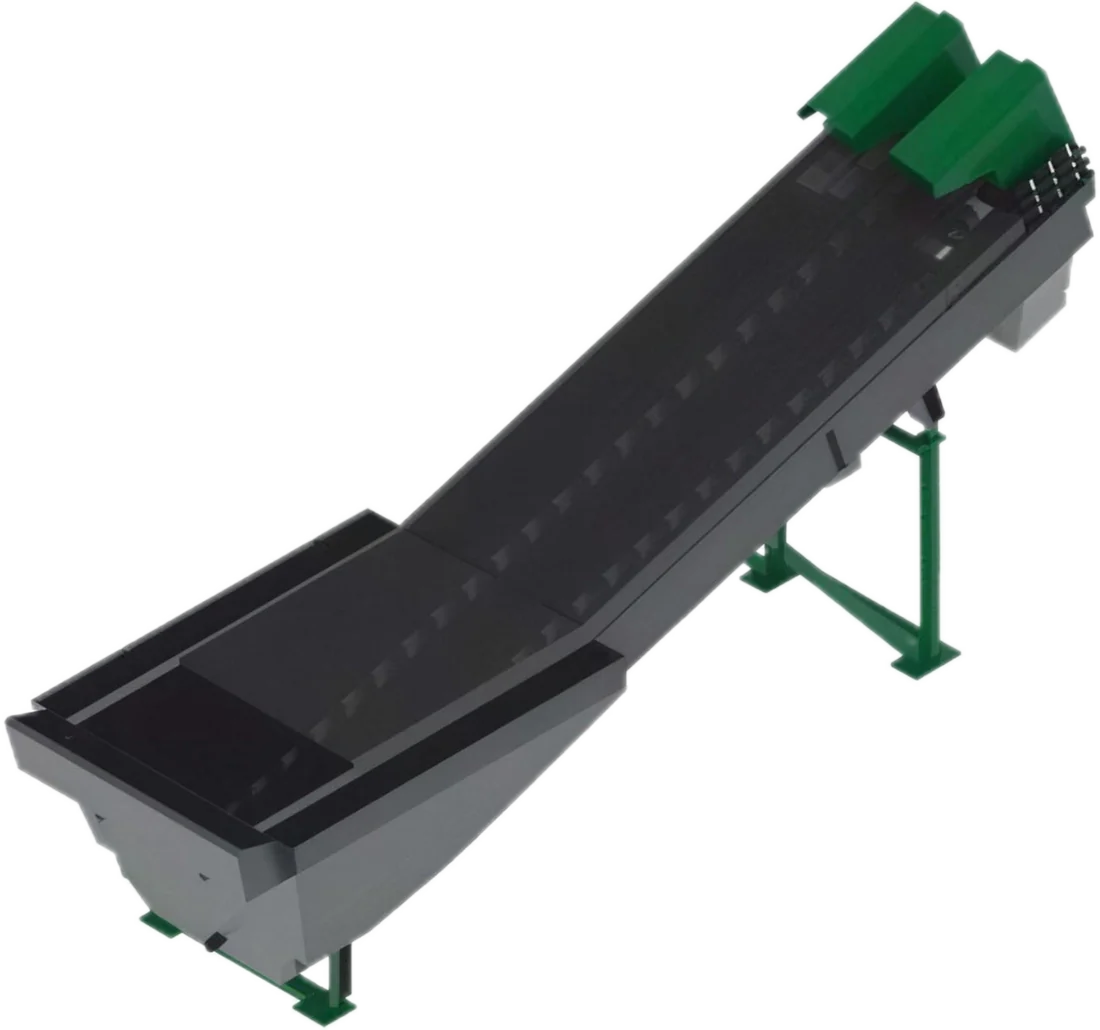

Screw Washer
The Elkamak Screw Washer removes dust, clay and other impurities from sand and fine aggregate through effective mixing in water. Available in single- and twin-screw configurations, it provides durable and efficient solutions for different capacity requirements.
HWS 500 · +5 models
- Type
- Tekli / Single
- Spiral Diameter
- 500Ø mm
- Spiral Length
- 5000mm
- Capacity
- 13-20t/h
Overview
Elkamak Screw Washer
The Elkamak Screw Washer is a high-performance washing system designed to remove dust, clay and other impurities from sand and fine aggregate. It produces cleaner, higher-quality material ready for subsequent production stages.
Operating Principle
Material to be washed is transferred through the feed section into the water-filled washing trough. The rotating screw mixes the material with water, helping separate dust, clay and unwanted substances from its surface.
The continuous rotation of the screw carries the material upward through the washing trough at a controlled rate. Washing continues as the material advances, and the cleaned product is delivered to the discharge section.
Single- and Twin-Screw Options
Elkamak Screw Washers can be manufactured with single- or twin-screw configurations according to plant capacity and application requirements. Twin-screw systems provide effective mixing and conveying performance in applications with higher material flow.
Key Advantages
- Effective cleaning of sand and fine aggregate
- Removal of dust, clay and unwanted impurities
- Continuous mixing, washing and conveying
- Single- and twin-screw configuration options
- High capacity and efficient operation
- Robust construction for demanding conditions
- Low maintenance requirements and long operating life
- Customizable design according to project requirements
Applications
Elkamak Screw Washers can be used in sand and stone quarries, aggregate production plants, mining operations, construction material production and concrete or asphalt recycling facilities.
With its robust engineering, effective washing technology and adaptable configurations, the Elkamak Screw Washer provides a reliable solution for producing clean, high-quality aggregate.
Models & Specifications
| Model | Type | Spiral Diameter(Ø mm) | Spiral Length(mm) | Capacity(t/h) | Motor Power(kW) | Weight(kg) |
|---|---|---|---|---|---|---|
| HWS 500 | Tekli / Single | 500 | 5000 | 13-20 | 5.5 | 1.720 |
| HWS 600 | Tekli / Single | 600 | 6000 | 20-30 | 7.5 | 2.650 |
| HWS 800 | Tekli / Single | 800 | 8000 | 35-60 | 15 | 4.600 |
| HWD 500 | Çiftli / Twin | 500 | 5000 | 25-40 | 2x5.5 | 3.000 |
| HWD 600 | Çiftli / Twin | 600 | 6000 | 40-60 | 2x7.5 | 5.000 |
| HWD 800 | Çiftli / Twin | 800 | 8000 | 60-80 | 2x15 | 7.500 |
